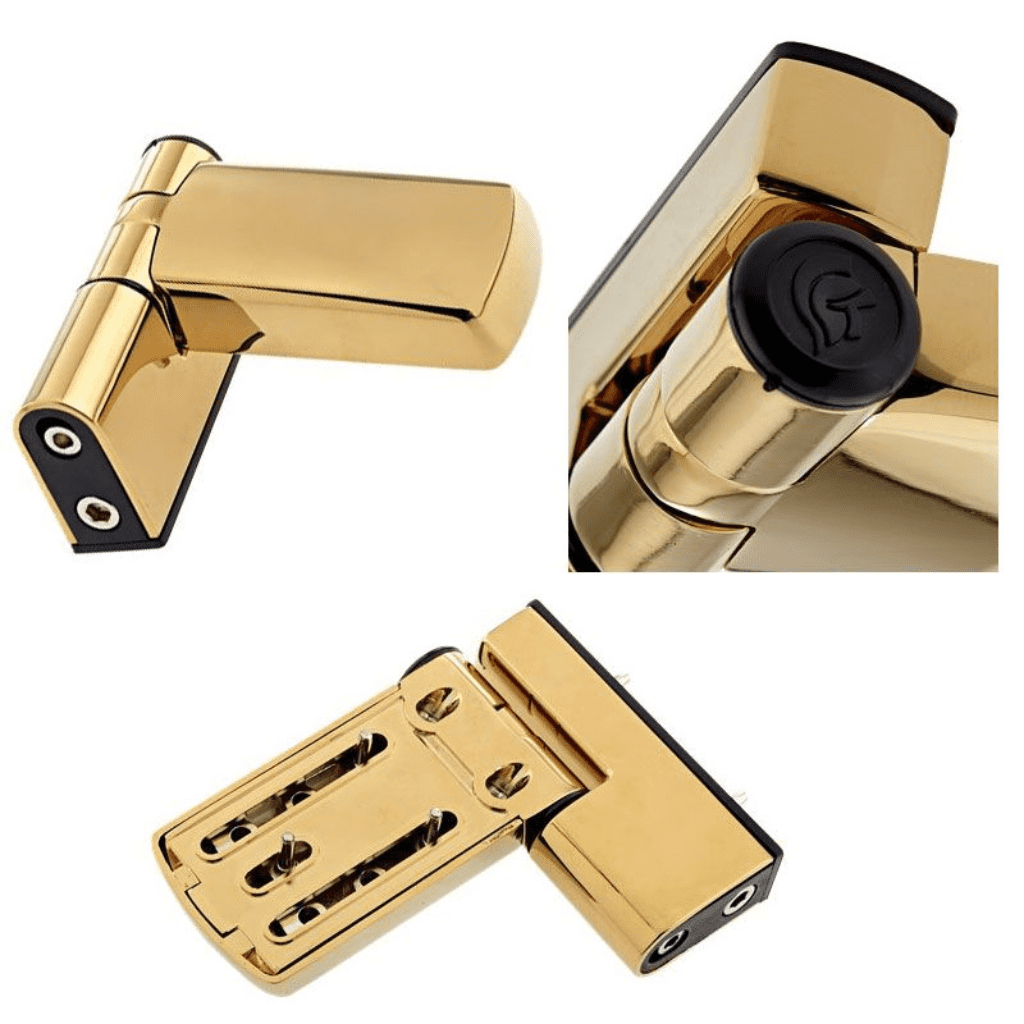

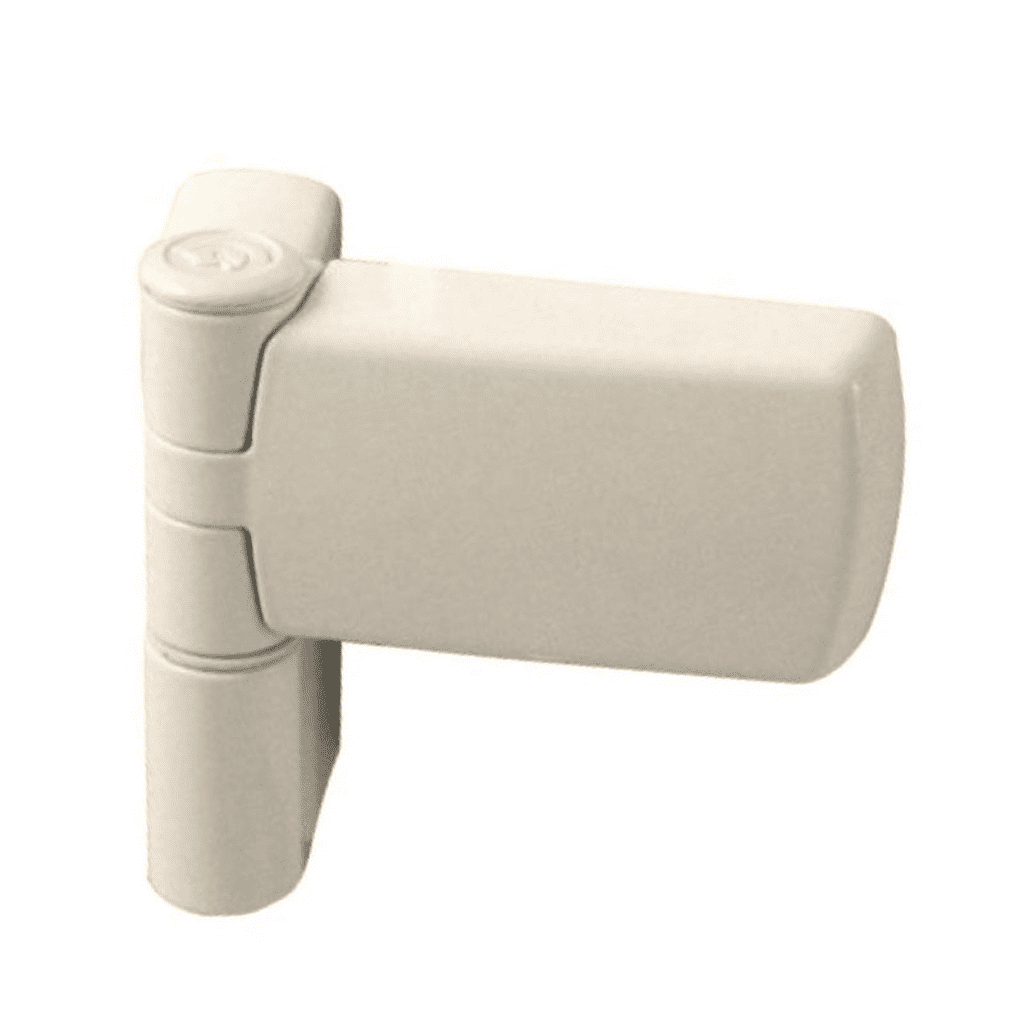

Trojan Patriot plus flag upvc door hinge, available in various colours.

Available in three upstand heights

Hinge is pre-assembled and ready to fit straight from the box.
PAS24 Compliant.
Patented anti-lift features - Fitter & Installer friendly.
Non-handed product.
Concealed fixings.
Designed to be slim and unobtrusive.
Fully adjustable 3D flag hinge.

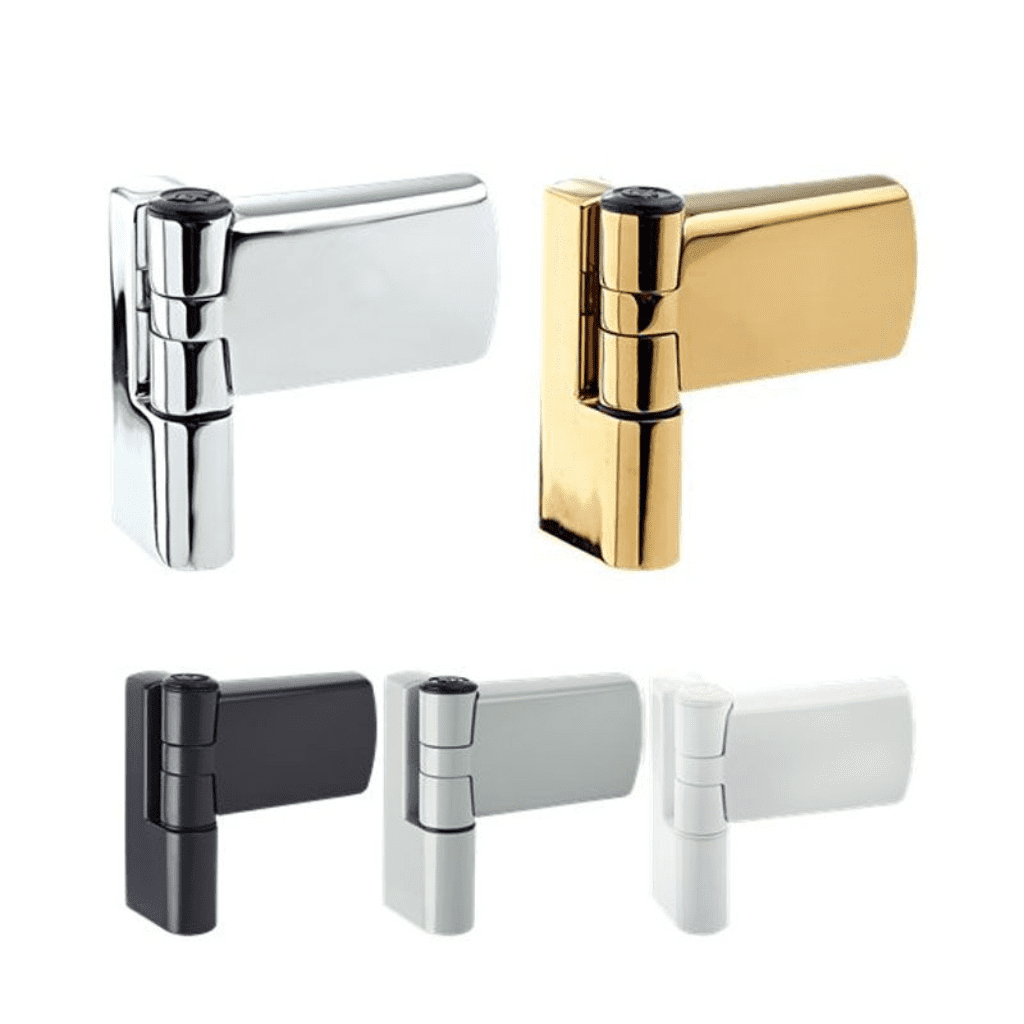

Available in white, black, brown, oak, chrome, PVD gold and satin silver.
16, 19 & 22mm step heights.
10 Year guarantee.
Tested to 100,000 cycles.
Grade 4 BS EN1670 corrosion resistance 480Hrs.
Height adjustment: +8mm
Compression adjustment: +/- 1.5mm
Lateral adjustment: +/- 6mm
Max weight carrying capacity: 3 hinges carry 80K
